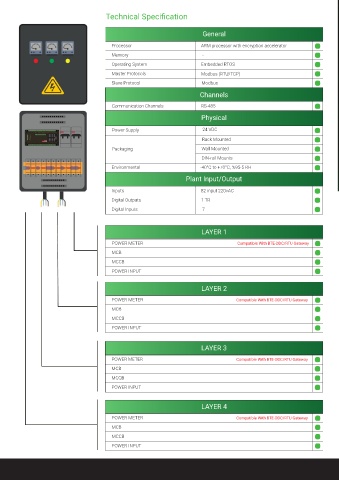

Technical Specification
General
Processor ARM processor with encryption accelerator
Memory -
Operating System Embedded RTOS
Master Protocols Modbus (RTU/TCP)
Slave Protocol Modbus
Channels
Communication Channels RS-485
Physical
Power Supply 24 VDC
Rack Mounted
Packaging Wall Mounted
DIN-rail Mounts
Environmental -40°C to +70°C, %95-5 RH
Plant Input/Output
Inputs 82 input 220vAC
Digital Outputs 1 TR
Digital Inputs 7
LAYER 1
POWER METER Compatible With BTE-DDC/RTU Gateway
MCB
MCCB
POWER INPUT
LAYER 2
POWER METER Compatible With BTE-DDC/RTU Gateway
MCB
MCCB
POWER INPUT
LAYER 3
POWER METER Compatible With BTE-DDC/RTU Gateway
MCB
MCCB
POWER INPUT
LAYER 4
POWER METER Compatible With BTE-DDC/RTU Gateway
MCB
MCCB
POWER INPUT
