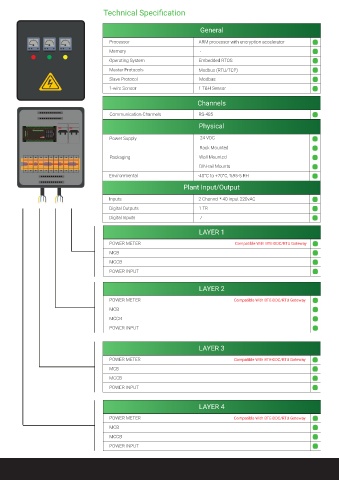

Technical Specification

General

Processor ARM processor with encryption accelerator
Memory -
Operating System Embedded RTOS
Master Protocols Modbus (RTU/TCP)
Slave Protocol Modbus
1-wire Sensor 1 T&H Sensor

Channels

Communication Channels RS-485
Physical

Power Supply 24 VDC
Rack Mounted
Packaging Wall Mounted
DIN-rail Mounts
Environmental -40°C to +70°C, %95-5 RH
Plant Input/Output

Inputs 2 Channel * 40 input 220vAC
Digital Outputs 1 TR
Digital Inputs 7

LAYER 1

POWER METER Compatible With BTE-DDC/RTU Gateway
MCB
MCCB
POWER INPUT

LAYER 2
POWER METER Compatible With BTE-DDC/RTU Gateway
MCB
MCCB
POWER INPUT

LAYER 3
POWER METER Compatible With BTE-DDC/RTU Gateway
MCB
MCCB
POWER INPUT

LAYER 4
POWER METER Compatible With BTE-DDC/RTU Gateway
MCB
MCCB
POWER INPUT
