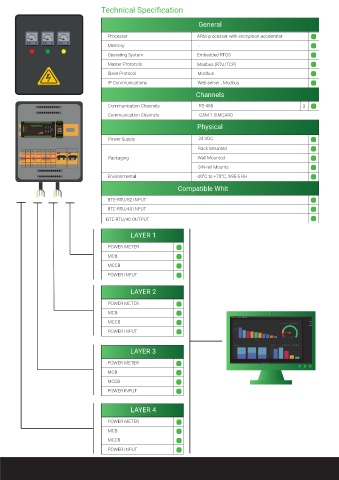

Technical Specification

General

Processor ARM processor with encryption accelerator
Memory -
Operating System Embedded RTOS
Master Protocols Modbus (RTU/TCP)
Slave Protocol Modbus
IP Communications Web server , Modbus
Channels

Communication Channels RS-485 3
Communication Channels GSM 1 SIMCARD
Physical

Power Supply 24 VDC
Rack Mounted
Packaging Wall Mounted
DIN-rail Mounts
Environmental -40°C to +70°C, %95-5 RH

Compatible Whit
BTE-RTU/82 INPUT
BTE-RTU/40 INPUT

BTE-RTU/40 OUTPUT

LAYER 1

POWER METER
MCB
MCCB
POWER INPUT

LAYER 2

POWER METER
MCB
MCCB
POWER INPUT

LAYER 3

POWER METER
MCB
MCCB
POWER INPUT

LAYER 4

POWER METER
MCB
MCCB
POWER INPUT
