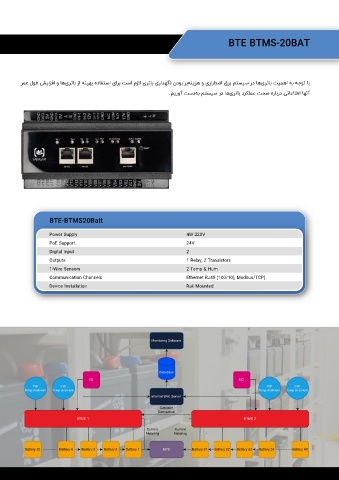

BTE BTMS-20BAT
ﺮﻤﻋ لﻮﻃ ﺶﯾاﺰﻓا و ﺎﻫ یﺮﺗﺎﺑ زا ﻪﻨﯿﻬﺑ هدﺎﻔﺘﺳا یاﺮﺑ ﺖﺳا مزﻻ یﺮﺗﺎﺑ یراﺪﻬﮕﻧ ندﻮﺑ ﺮﺑ ﻪﻨﯾﺰﻫ و یراﺮﻄﺿا قﺮﺑ ﻢﺘﺴﯿﺳ رد ﺎﻫ یﺮﺗﺎﺑ ﺖﯿﻤﻫا ﻪﺑ ﻪﺟﻮﺗ ﺎﺑ
.ﻢﯾروآ ﺖﺳد ﻪﺑ ﻢﺘﺴﯿﺳ رد ﺎﻫ یﺮﺗﺎﺑ دﺮﮑﻠﻤﻋ ﺖﺤﺻ هرﺎﺑرد ﯽﺗﺎﻋﻼﻃا ﺎﻬﻧآ
BTE-BTMS20Batt
Power Supply 4W 220V
PoE Support 24V
Digital Input 2
Outputs 1 Relay, 2 Transistors
1-Wire Sensors 2 Temp & Hum
Communication Channels Ethernet RJ45 (100/10), Modbus/TCP)
Device Installation Rail Mounted
Monitoring Software
Data Base
I/O I/O
Cell Cell Cell Cell
Temp And Hum Temp And Hum Temp And Hum Temp And Hum
Internal Web Server
Cascade
Connection
BTMS 1 BTMS 2
Current Current
Metering Metering
Battery 20 Battery 4 Battery 3 Battery 2 Battery 1 UPS Battery 21 Battery 22 Battery 23 Battery 24 Battery 40
