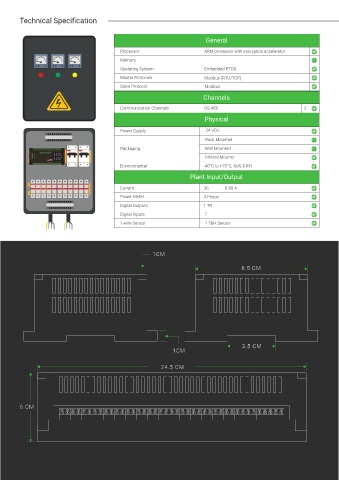

Technical Specification



                                                                         General

                                           Processor                     ARM processor with encryption accelerator
                                           Memory                        -
                                           Operating System              Embedded RTOS
                                           Master Protocols              Modbus (RTU/TCP)
                                           Slave Protocol                Modbus

                                                                        Channels
                                           Communication Channels        RS-485                             2

                                                                         Physical
                                           Power Supply                  24 VDC
                                                                         Rack Mounted
                                           Packaging                     Wall Mounted
                                                                         DIN-rail Mounts
                                           Environmental                 -40°C to +70°C, %95-5 RH
                                                                    Plant Input/Output

                                           Current                       36      0-80 A
                                           Power Meter                   3 Phase
                                           Digital Outputs               1 TR
                                           Digital Inputs                7
                                           1-wire Sensor                 1 T&H Sensor





                                                       1CM

                                                                                      8.5 CM















                                                                                      3.5 CM
                                                              1CM


                                                          24.5 CM







        6 CM
