1. +DC
2. DATA
3. DATA
4. -DC

1
2
3
4

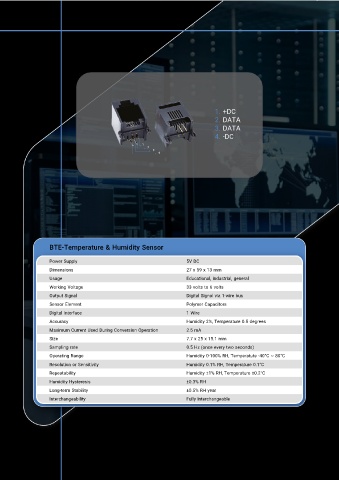

BTE-Temperature & Humidity Sensor

Power Supply 5V DC
Dimensions 27 x 59 x 13 mm
Usage Educational, industrial, general
Working Voltage 33 volts to 6 volts
Output Signal Digital Signal via 1-wire bus
Sensor Element Polymer Capacitors
Digital Interface 1 Wire
Accuracy Humidity 2%, Temperature 0.5 degrees
Maximum Current Used During Conversion Operation 2.5 mA
Size 7.7 x 25 x 15.1 mm
Sampling rate 0.5 Hz (once every two seconds)
Operating Range Humidity 0-100% RH, Temperatute -40°C ~ 80°C
Resolution or Sensitivity Humidity 0.1% RH, Temperature 0.1°C
Repeatability Humidity ±1% RH, Temperature ±0.2°C
Humidity Hysteresis ±0.3% RH
Long-term Stability ±0.5% RH year
Interchangeability Fully Interchangeable
