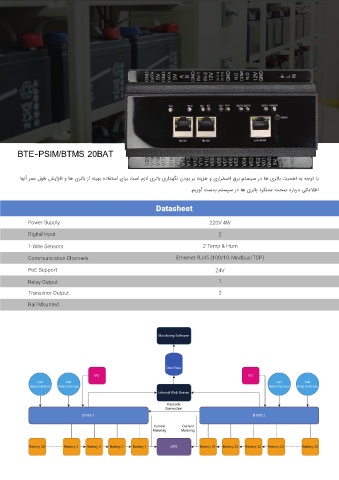

BTE-PSIM/BTMS 20BAT

ﺎﻬﻧآ ﺮﻤﻋ لﻮﻃ ﺶﯾاﺰﻓا و ﺎﻫ یﺮﺗﺎﺑ زا ﻪﻨﯿﻬﺑ هدﺎﻔﺘﺳا یاﺮﺑ ﺖﺳا مزﻻ یﺮﺗﺎﺑ یراﺪﻬﮕﻧ ندﻮﺑ ﺮﺑ ﻪﻨﯾﺰﻫ و یراﺮﻄﺿا قﺮﺑ ﻢﺘﺴﯿﺳ رد ﺎﻫ یﺮﺗﺎﺑ ﺖﯿﻤﻫا ﻪﺑ ﻪﺟﻮﺗ ﺎﺑ
.ﻢﯾروآ ﺖﺳﺪﺑ ﻢﺘﺴﯿﺳ رد ﺎﻫ یﺮﺗﺎﺑ دﺮﮑﻠﻤﻋ ﺖﺤﺻ هرﺎﺑرد ﯽﺗﺎﻋﻼﻃا

Datasheet

Power Supply 220V 4W

Digital Input 2

1-Wire Sensors 2 Temp & Hum
Communication Channels Ethernet RJ45 (100/10, Modbus/TCP)

PoE Support 24V
Relay Output 1

Transistor Output 2
Rail Mounted

Monitoring Software

Data Base
I/O I/O
Cell Cell Cell Cell
Temp And Hum Temp And Hum Temp And Hum Temp And Hum
Internal Web Server
Cascade
Connection
BTMS 1 BTMS 2
Current Current
Metering Metering

Battery 20 Battery 4 Battery 3 Battery 2 Battery 1 UPS Battery 21 Battery 22 Battery 23 Battery 24 Battery 40
