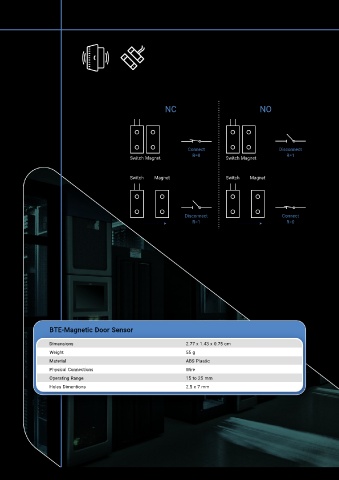

NC NO

Connect Disconnect
R=0 R=1
Switch Magnet Switch Magnet

Switch Magnet Switch Magnet

Disconnect Connect
R=1 R=0

BTE-Magnetic Door Sensor

Dimensions 2.77 x 1.43 x 0.75 cm
Weight 55 g
Material ABS Plastic
Physical Connections Wire
Operating Range 15 to 25 mm
Holes Dimentions 2.5 x 7 mm
