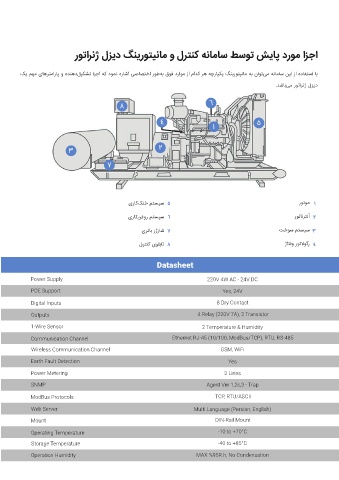

رﻮﺗاﺮﻧژ لﺰﯾد ﮓﻨﯾرﻮﺘﯿﻧﺎﻣ و لﺮﺘﻨﮐ ﻪﻧﺎﻣﺎﺳ ﻂﺳﻮﺗ ﺶﯾﺎﭘ درﻮﻣ اﺰﺟا
ﮏﯾ ﻢﻬﻣ یﺎﻫﺮﺘﻣارﺎﭘ و هﺪﻨﻫد ﻞﯿﮑﺸﺗ اﺰﺟا ﻪﮐ دﻮﻤﻧ هرﺎﺷا ﯽﺻﺎﺼﺘﺧا رﻮﻃ ﻪﺑ قﻮﻓ دراﻮﻣ زا ماﺪﮐ ﺮﻫ ﻪﭼرﺎﭙﮑﯾ ﮓﻨﯾرﻮﺘﯿﻧﺎﻣ ﻪﺑ ناﻮﺗ ﯽﻣ ﻪﻧﺎﻣﺎﺳ ﻦﯾا زا هدﺎﻔﺘﺳا ﺎﺑ
.ﺪﺷﺎﺑ ﯽﻣ رﻮﺗاﺮﻧژ لﺰﯾد
٦
٨
٤ ٥
١
٢
٣
٧
یرﺎﮐ ﮏﻨﺧ ﻢﺘﺴﯿﺳ ٥ رﻮﺗﻮﻣ ١
یرﺎﮐ ﻦﻏور ﻢﺘﺴﯿﺳ ٦ رﻮﺗﺎﻧﺮﺘﻟآ ٢
یﺮﺗﺎﺑ رژرﺎﺷ ٧ ﺖﺧﻮﺳ ﻢﺘﺴﯿﺳ ٣
لﺮﺘﻨﮐ یﻮﻠﺑﺎﺗ ٨ ژﺎﺘﻟو رﻮﺗﻻﻮﮔر ٤
Datasheet
Power Supply 220V 4W AC - 24V DC
POE Support Yes, 24V
Digital Inputs 8 Dry Contact
Outputs 4 Relay (220V 7A), 2 Transistor
1-Wire Sensor 2 Temperature & Humidity
Communication Channel Ethernet RJ-45 (10/100, ModBus/TCP), RTU, RS-485
Wireless Communication Channel GSM, WiFi
Earth Fault Detection Yes
Power Metering 2 Lines
SNMP Agent Ver 1,2c,3 - Trap
ModBus Protocols TCP, RTU/ASCII
Web Server Multi Language (Persian, English)
Mount DIN-Rail Mount
Operating Temperature -10 to +70°C
Storage Temperature -40 to +85°C
Operation Humidity MAX %95R.h, No Condensation
